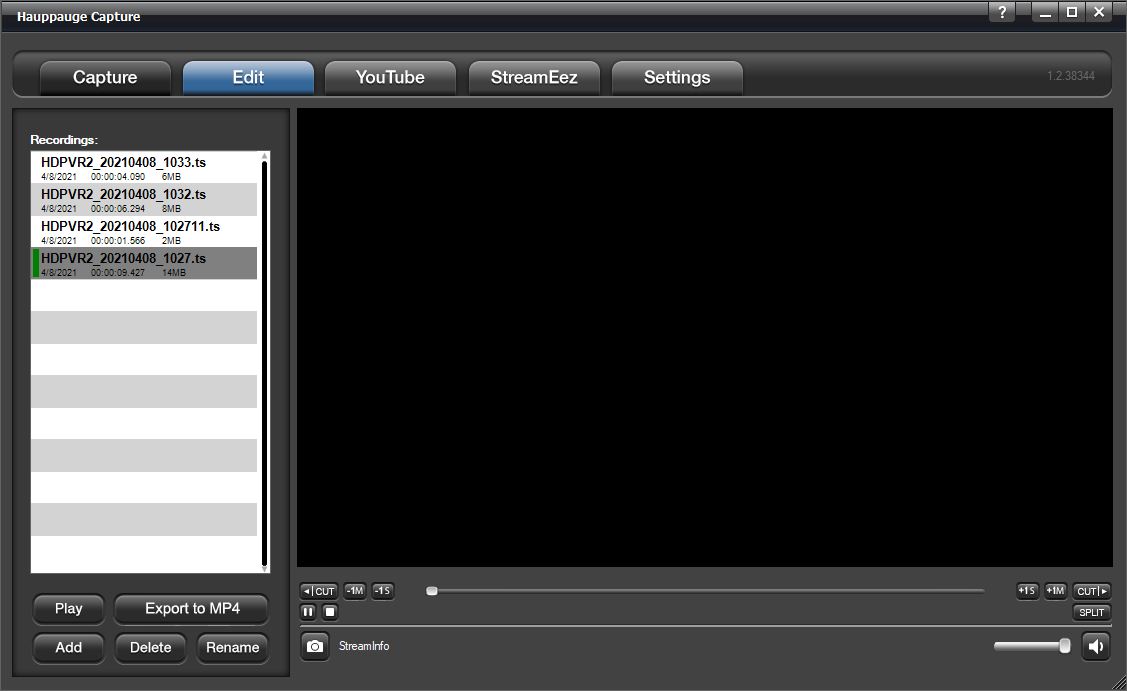

Edit Tab

Recordings: The recorded files will be listed here. Click the recording with which you wish to work with.

Play: Click to play your file. You can stop or pause play your file with the buttons located below the cut left button below the playback window on the left.

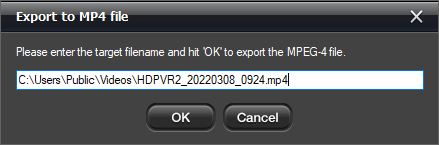

Export to MP4: Files captured in TS or M2TS can be exported to MP4 after already being captured.

Note: files can only be exported to MP4, but you can't edit MP4 files. Only .TS and .M2TS files can be edited by Hauppauge Capture.

Add: Use to import a file into the editor file list.

Delete: Click to delete a recording or edited file. A file deleted through the application will be completely deleted and will not go to the recycling bin.

Rename: Click to rename a file. If a file is currently open, you must hit stop first before renaming the file.

Using the Cuts Editor

You can navigate through your clip using the slider or just watch your video to find your cut points. You can also use the back button and forward button to move in 1-minute increments. Use the and for one-second increments.

If you wish to cut off the first minute of the clip navigate there and click the button. This will remove the first minute and recreates the file. The same thing applies if you wish to remove something from the back end. Find the spot and click the button. The button will let you split the file and will create two files at the point you choose.

This is a simple cuts editor. If you need to put the pieces together to create a new file you will need to copy the clips you wish to work with into a third-party video editor.
